PL-Renaissance/SMP
= Polski tekst jest w opracowaniu. =
The PowerLeap™ PL-Renaissance/SMP upgrade board allows systems
computers to take advantage of the latest FC-PGA (Coppermine) &
PPGA (Celeron) CPU from Intel,
The upgrade board employs patented (Japanese Registered Utility Model No. 3042946),(USApatent No.5,919,259 & 5,938,769) technology to adapt systems to the voltage and FSB requirements of this new generation of processors. It provides an upgrade solution that surpass the replacement of the motherboard.
This high performance Upgrade board’s employed today’s advanced technologies. : Three buffered, 3.3 Volts, 168-pin DIMM sockets are included for supporting ECC SDRAM & standard SDRAM. It also utilizes Intel's 82371AB (PIIX4) Chipset. The Intel’s 82371AB PCI/ISA IDE provides an integrated Bus Mastering IDE controller with two high performance IDE interfaces for up to four IDE devices (such as hard drives or CD-ROM). The Winbond W83977/TF super I/O controller integrates the standard PC I/O functions: Floppy interface, two FIFO serial ports, one EPP/ECP capable parallel port and support for Consumer InfraRed compatible interface.
This board is designed to support the new graphic interface
standard, Accelerated Graphic Port (AGP), The AGP interface can reach
a theoretical ~532Mbytes/sec(X2)
|
Processor |
Two ZIF socket (PGA-370) support Intel Pentium!!! up to 800 MHz and Intel Celeron up to 533MHz |
|
Chipset |
Intel 440BX AGPset |
|
BIOS |
Award BIOS, support DMI, Plug-and-Play, ACPI, Boot from CD-ROM, LS-120 120MB F.D.D., ZIP Devices Support Symbios SCSI BIOS Anti-virus BIOS for prevention against boot-virus |
|
System Memory |
3 168-pin DIMM Sockets up to 768 MB SDRAM Memory Capacity Support 8/16/32/64/128/256 MB Memory Module ECC Supported |
|
On-board I/O Features |
1 PS/2 KeyBoard Port 1 PS/2 Mouse Port 2 USB ports 2FAN Port Hrader 1 Floppy Port Header ( Support LS120) 1 Parallel Port Header (EPP, ECP Port) 1 IrDA TX/RX Header 2 Serial Port Header (16550 Fast UART Compatible) 1 MIDI/game Port Header and 1 Audio Jacks: Line Out, Line In, and Mic. In 2 CD In 3 PCI Slots(support PCI-X 64bit/PCI-32bit) 1 AGP Slots(support AGP 2X---4X reserved for future upgrade model) |
|
Advanced Features |
1. AGP 2X & 4X 3D-Graphics and ESS Solo1 PCI-Audio built-in onboard
2. Modem Ring-in Remote Power on(For ATX Power) 4.Built-in RealTek Fast Ethernet Controller(RTL8139B) support 10/100Mb/s operation 5.Built-in Intel 21154 PCI to PCI Bridge(support PCI-X 64bit up to 528MB/s) |
|
PCI Bus Master IDE |
2 UltraDMA/33 PCI Bus Master IDE Ports support up to 33MB/s |
|
Power Connector |
4-pin Power Connector on CPU Card 3-pin Power Connector for ATX Power function ATX 20-pin Power Connector & AT 12-pin Power Connector on SlotBoard |
|
Switching VR |
Switching Voltage Regulator to support 1.3V to 3.5V |
|
Form Factor |
CPU Card:343mm * 128mm SlotBoard:262mm * 153mm |
C. Board Layout :

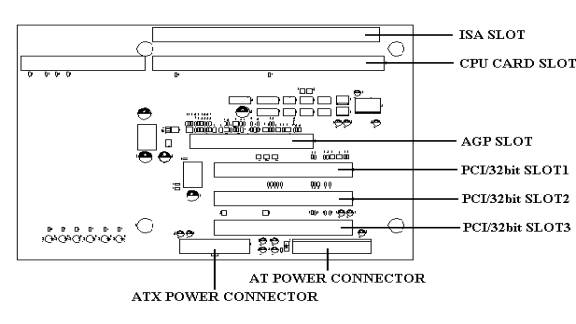

Model: SlotBoard/32

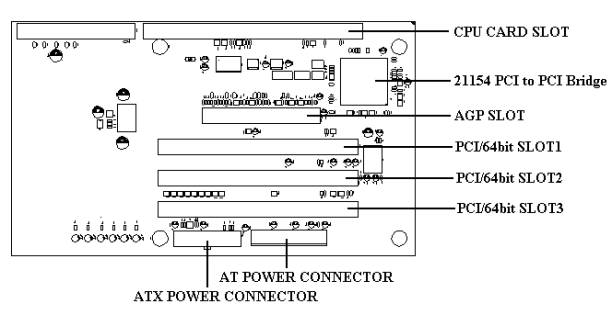

Model: SlotBoard/64 (PCI-X Slots)

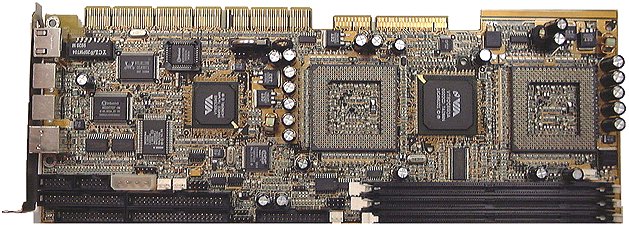

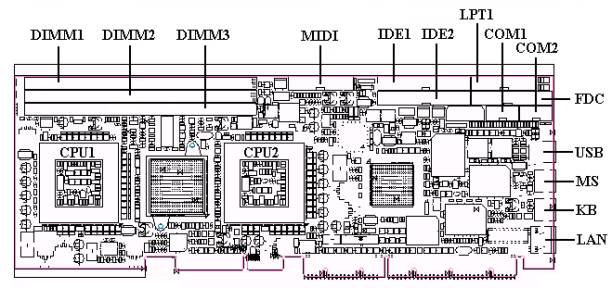

CPU Card
D. Mechanical Performance
SlotBoard
|
Physical Dimension |
|
|
|
|
1. Length |
262mm ± 0.2mm |
|
|
2. Width |
153mm ± 0.2mm |
|
|
3. Thickness |
1.6mm ± 0.1mm |
|
PC Board Construction |
|
|
|
|
1. PC Board Layer |
4 layers |
|
|
2. Base Material |
Fiber Glass FR-4 94-0 |
|
|
3. Copper Thickness |
1/1 oz |
Marks |
|
|
|
|
Model Name |
PL-SlotBoard/32 PL-SlotBoard/64 |
CPU Card
|
Physical Dimension |
|
|
|
|
1. Length |
343mm ± 0.2mm |
|
|
2. Width |
128mm ± 0.2mm |
|
|
3. Thickness |
1.6mm ± 0.1mm |
|
PC Board Construction |
|
|
|
|
1. PC Board Layer |
8 layers |
|
|
2. Base Material |
Fiber Glass FR-4 94-0 |
|
|
3. Copper Thickness |
1/1 oz |
|
Marks |
|
|
|
|
Model Name |
PL-Renaissance/SMP |
|
Package |
|
|
|
|
1. ESD bag |
|
|
|
2. Gift case |
|
|
|
3. Carton : N/A |
|
|
Accessories |
|
|
|
|
1. Manual |
|
|
|
2. One CD-ROM |
Utility Disk |
|
|
3. One HDD Cable |
|
|
|
4. One FDD Cable |
|
|
|
5. One Parallel/SerialPort Cable |
|
|
|
6. One Audio/Game Cable |
|
|
|
7. One 3Pin Power Cable & One 4Pin Power Cable |
|
